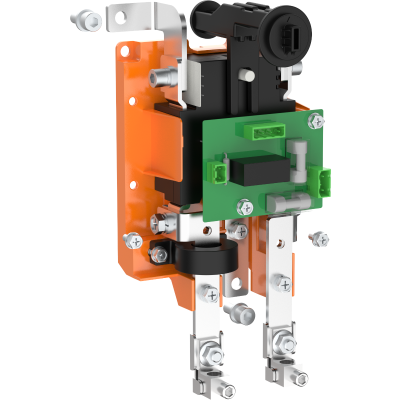

FranklinWH Generator Module 100A@240Vac w/CTs
Non-Trade customers are welcome to purchase.
For Trade customers, please Sign In or Register for a Trade Account
You are submitting an enquiry for
The FranklinWH Generator Module is an optional component of the aGate system that enables you to integrate generators into your Franklin solution. During a power grid failure, it allows for fast and reliable switching to connected generator power.
Features:
Integrated Power Management
- The generator can both power home loads and charge the aPower X Battery.
Easy Installation
- The Generator Module is an optional aGate X component which can be easily installed without requiring any external components.
- Compatible with any two-wire or utility sense standby generator, with or without ATS.
Wide Adaptability
- Compatible with most models of standby generators. Applicable for new and retrofit installations.
Better Experience
- Seamless and automatic generator switchover and remote manual control via the app.
Operation Modes:
Automatic
- Set the aPower X battery State of Charge (SoC) limits for the generator to start and stop. The FHP will intelligently control the power sources to balance the generator and battery.
Manual
- Remotely start and stop the generator according to the household’s immediate needs via the FranklinWH app.
|
Generator Module |
|
|
AC Voltage |
AC Voltage |
| Voltage Range |
204 to 276 V @240 V |
| Maximum Continuous Current |
160 A |
| Over Current Protection Device for the Generator Module |
200 A Max. |
| Frequency Range |
60 Hz ± 5 Hz |
| Voltage Measurement Accuracy |
± 1% |
| Frequency Measurement Accuracy |
± 0.01 Hz |
| Current Measurement Accuracy |
± 1% |
| Ambient Temperature |
- 4°F to 122°F (- 20 to 50°C) |
| User Interface |
FranklinWH app |
| Operating Modes |
Auto (Timed Charging Schedule based on battery’s SoC) |
| Control Types |
Utility Voltage Sensing |
| Dimensions (H x W x D) |
11.2 x 4.1 x 2.6 in (285 x 105 x 65 mm) |
| Weight |
3.2 lbs (1.45kg) |
