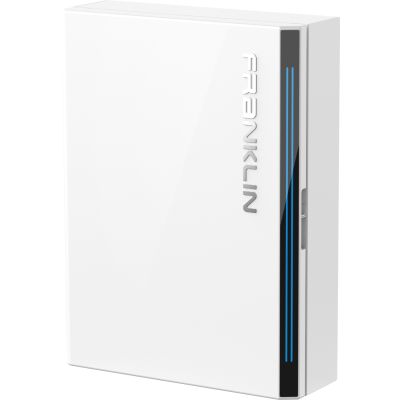

Franklin A Gate

The aGate is an intelligent management device integrating solar, grid, generator and aPower batteries to support home loads.

Features:

Exceptional Performance:

• Rapid Switch Over: Experience swift grid-to-micro-grid transitions with a remarkable switch-over time of less than 16 milliseconds.
• Scalability: Harness the power of up to 15 aPowers scalable per aGate, enabling you to tailor your energy solution to your needs.
• Supply Fault Current: With a capacity to manage a maximum supply fault current of 10 kA, our solution ensures your system remains stable even in challenging scenarios.
• Versatile Communication: Stay connected with multiple communication options including Ethernet, 4G, Wi-Fi, and Bluetooth, providing you with seamless control and monitoring.

Built for Varied Environments:

• Altitude Compatibility: Our solution thrives at elevations of up to 4000m, making it suitable for a wide range of locations.
• Temperature Range: Designed to withstand Australia's diverse climate, our solution operates effectively within a broad temperature range of -20°C to 50°C.
• Ingress Protection: Rest assured with an IP55 rating for robust protection against environmental factors.

Precision Mechanical Design:

• Compact Dimensions: Crafted with dimensions of 650mm in height, 480mm in width, and 160mm in depth, our solution maximizes functionality without compromising on space.
• Featherweight Build: Despite its exceptional capabilities, this solution weighs a mere 23kg, ensuring easy handling and installation.
• Flexible Installation: Tailor the installation to your requirements, whether it's indoors or outdoors, and conveniently wall-mounted.

Certified Excellence:

• Compliance with Standards: Our solution adheres to internationally recognized standards including IEC / EN62109-1, IEC / EN62109-2, IEC / EN62477-1, AS/NZS 4777.2:2020, IEC62040-1, IEC / EN61439-1, and IEC / EN61439-2, ensuring the highest level of quality and performance."

Scenarios:

• Residential
• Warehouse
