Euroka Rectifier Module 4KW 85-420VDC 83-300VAC
Non-Trade customers are welcome to purchase.
For Trade customers, please Sign In or Register for a Trade Account
You are submitting an enquiry for

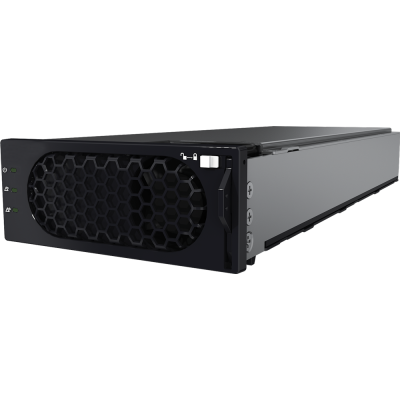

The LBE-RMO4KW is a cutting-edge digital rectifier module that offers exceptional power density and efficiency, capable of producing up to 4000W of power with a maximum efficiency of 97%. It supports a wide range of input voltages, from 85VAC to 300VAC, or 85VDC to 420VDC, and has an adjustable output voltage range of -42VDC to -58VDC, or a constant output of -57VDC. The module incorporates advanced features such as soft start, hot-swapping, and low noise, and employs the latest power monitoring technology to enable real-time monitoring of both the rectifier module and the load.
Features:
|
|
Scenarios:
- Access Network
- Transmission Network
- Communication Network
|
Product Type |
LBE-RMO4KW |
|
Basic Specifications |
|
|
Dimension (W x D x H) |
105mm x 281mm x 40.8mm |
|
Weight |
≤ 2.2kg |
|
Cooling |
Forced air cooling (Built-in fan) |
|
Input Feature |
|
|
Input Mode |
AC: 220VAC single-phase (or 110VAC dual-live lines) / DC: NA |
|
Input Voltage |
AC: 85VAC-300VAC / DC: 85VDC-420VDC |
|
Frequency |
AC: 5Hz-66Hz, rated: 50/60Hz / DC: NA |
|
Power Factor |
AC: ≥ 0.99 (load ≥ 50%) / DC: NA |
|
THD |
AC: ≤ 3% (load ≥ 50%) / DC:NA |
|
Output Feature |
|
|
Efficiency |
97% Max ≥96% (230VAC, 30% - 80% load) |
|
Output Voltage |
42VDC - 58 VDC, rated voltage: 53.5VDC / 57VDC |
|
Output Power |
4000W (176VAC - 300VAC) , 1600W (85VAC - 175VAC linear derating |
|
Ripple and Noise |
≤ 200mVp-p (bandwidth ≤ 20 MHz) |
|
Hold-up Time |
> 10ms |
|
Output Regulated Voltage Precision |
≤ 0.6% Vo from no load to full load |
|
Current Share |
±5% output rated current from 10% to 100% load |
|
Environment |
|
|
Operating Temperature |
40°C to +75°C |
|
Storage Temperature |
-40°C to +75°C |
|
Operating Humidity |
5% - 95% (non-condensing) |
|
Altitude |
0 - 5000m (When the altitude ranges from 2000m to 5000m, the operating temperature decreases by 1°C for each additional 200m) |
|
Protection |
|
|
Input Overvoltage Protection |
AC protection threshold: > 300VAC DC protection threshold: > 420VDC |
|
Input Under-voltage Protection |
AC protection threshold: < 80VAC |
|
Output Over-voltage Protection |
Protection range: 56VDC - 60VDC |
|
Output Short Circuit Protection |
A long term short circuit is allowed. After the fault disappears, |
|
Over-temperature Protection |
The rectifier protects against over-temperature |
|
Audible Noises |
|
|
Specification |
≤ 55dB (40＜, full load) |
|
Safety / EMC / Lightning Protection |
|
|
Safety Certification |
TUV, CE, and UL, CB certificate |
|
EMC |
EN55032 Class B; EN55024; EN61000-3-2; EN61000-3-3; |
|
Lightning Protection |
5kA |
