Euroka Outdoor Photovoltaic Controller 3600W -42 to -58VDC
Non-Trade customers are welcome to purchase.
For Trade customers, please Sign In or Register for a Trade Account
You are submitting an enquiry for

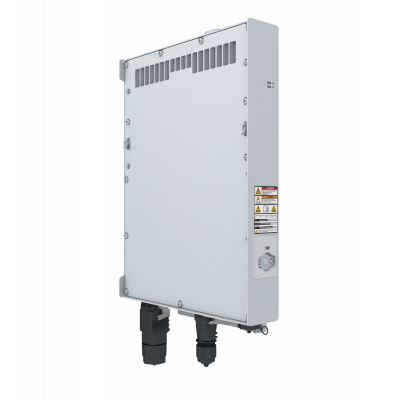

The EUR-OPC3600W is an innovative solar power control unit designed for telecommunication sites that utilize solar energy. It is primarily utilized in third-party power scenarios that have access to solar power and supports both Euroka Energy Storage System 200KWH and Euroka Distributed Blade Battery Unit 2400WH. The controller features an integrated solar MPPT module and PLC communication conversion module, with a maximum system capacity of 3600W.
Features:
- Simple installation: supports pole and wall mounted installation with ""0"" footprint and supports modular capacity expansion
- High Efficiency: equipped with natural heat dissipation, voltage adaptation for prolonged energy storage lifespan, and 97% max high efficiency
- Management: Supports modular, battery and remote energy management"
Scenarios:
- Outdoor blade/cabinet power
- Solar access with third party power
|
Product Type |
LBE-OPC3600W |
|
System |
|
|
Dimension (W×D×H) |
300mm x 60mm x 400mm |
|
Weight |
8kg |
|
Installation Mode |
Wall-mounted, pole-mounted |
|
Cabling Mode |
Bottom inlet and outlet |
|
Protection Level |
IP65 |
|
Temperature Control Mode |
Natural heat dissipation |
|
Standby Power |
≤ 5W |
|
Operating Environment |
Class C* |
|
Environment |
|
|
Operating Humidity |
5% to 95% (non-condensing) |
|
Working Temperature |
-40oC to +45oC (without solar radiation) |
|
Altitude |
0 to 2000 m (From 2000~5000m, each 200m increases in |
|
Input |
|
|
Input Voltage |
80 ~ 435 V DC |
|
Input Capacity |
Max. 3600W, 1× 20 A |
|
SPD |
10 kA, 8/20 µs |
|
Output |
|
|
Output Voltage |
-42V DC to -58V DC |
|
DC Output |
1 × 80 A quick plug terminals |
|
Efficiency |
Maximum efficiency 97% |
|
Communication Interface |
|
|
Interface Definition |
Southbound (DB9+DB15): 2 × CAN; |
|
Communication Module Standby Power |
The typical working power consumption of the 4G Dongle is ≤ 2 |
