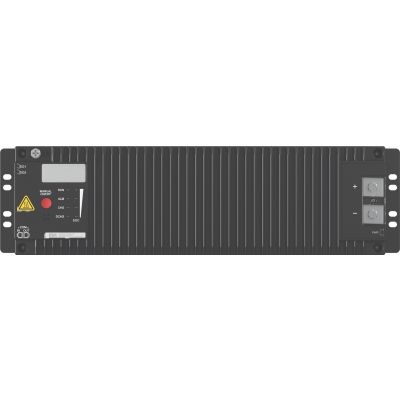

Euroka Energy Storage Module 100AH 48VDC
Non-Trade customers are welcome to purchase.
For Trade customers, please Sign In or Register for a Trade Account
You are submitting an enquiry for
Lek Energy has developed a state-of-the-art energy storage module, the LBE-ESM100AH, which incorporates numerous intelligent features and advanced security functions to prevent theft. This module system can connect to a telecom power source and leverages cloud-lithium collaboration via IoT gateway to enable even more intelligent functionality through PMS. Its optimised design enables efficient energy storage at specific locations through flexible and fast charging options and a prolonged battery life. Additionally, the system can be connected to parallel lead-acid battery strings, providing opportunities for battery reuse.
Features:
- D3- Intelligent functionality: Includes SOC&SOH management, simplified O&M, and self-management features (requires SOH and PMS license).
- Intelligent collaboration: Collaborates with an intelligent power system for advanced functionality such as intelligent peak shaving, staggering, voltage boosting, and hybrid use. Can also work with an intelligent management system for cloud-based peak shaving, staggering, voltage boosting, and hybrid use.
- Intelligent anti-theft design: Features GPS, software lock, displacement lock, and buzzer alarm for enhanced security.
- High reliability: Integrated BMS design ensures long service life.
- High-density: 100 Ah capacity with only 3U height.
Scenarios:
- Enterprise Telecom Scenario
| Item | Description |
|---|---|
| Parameters | |
| Product Model | LBE-ESM100AH |
| Cathode Material | LiFePO4 |
| Nominal Voltage | 48V DC |
| Nominal Charging Voltage | 56.4 Vdc |
| Max. Charging / Discharging Current Limited | 100 A @ 35ºC |
| Max. Charging / Discharging Power | 4800 W |
| Cycle Life | 3500 cycles @ 0.5C, 85% DOD, 70% EOL, 35ºC |
| Nominal Capacity | 100 Ah @ 0.2C, 35ºC |
| Weight | Approx. 43kg |
| Dimension (W X D X H | 442mm x 396mm x 130mm (excluding mounting ear) |
| Self Discharge @ 25ºC | Less than 5% after 90 days storage |
| Communication Interface | CAN / RS485; 2 dry contacts |
| Max. Quantity Of Parallel Connection | CAN: 32; RS485: 16 |
| Terminal | M6, torque 4 N∙m |
| Installation Type | Standard 19” rack, Air conditioning system or direct ventilation cabinet |
| Operating Condition | Air conditioner, direct ventilation in Class B environment |
| Protection & Alarm | Over temperature, overcurrent, short circuit, overcharge, overdischarge, etc |
| Certification | CE, UN38.3 |
| Design Life | 15 year |
| Environmental | |
| Storage Temperature2 | Storage: 0ºC to 40ºC |
| Transportation Temperature | -40ºC to 60ºC |
| Operating Temperature3 | Charging: 0ºC to 45ºC; Discharging: -20ºC to 45ºC |
| Relative Humidity | 5% to 95% |
| Operating Atmospheric Pressure | 61kPa~113kPa |
1. The software lock function will only be available when connected to specified energy controller (SMU02C) ;displacement lock and buzzer alarm require license to activate. GPS function relies on IoT module and GPS license.
2. The recommended storage temperature is 20 ~ 30ºC, the battery life would be reduced if battery is stored in high temperature. (The recharging interval should be 12 months when temperature is below 30ºC, and it should be 8 months when temperature is 30 ~ 40ºC )
3. Charging and discharging current may be derated or battery will be protected when battery is out of the temperature range
4. When the output power of battery reaches to the maximum value, over temperature protection may be triggered, which shortens the battery discharging time.
5. The parameters in this datasheet are based on the date of production, and may be affected by external environment factors, such as temperature, transportation, and storage
