Euroka Distributed Power Unit 3KW 57VDC 85-300VAC
Non-Trade customers are welcome to purchase.
For Trade customers, please Sign In or Register for a Trade Account
You are submitting an enquiry for

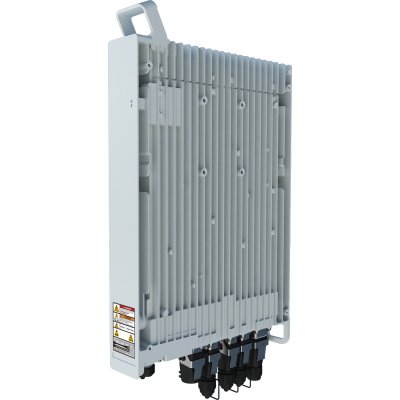

LBE-DPU3KW is a next-generation power solution designed for compact sites. It is a type of Distributed Power Unit (DPU) that can be easily installed on poles or walls. The LBE-DPU3KW is ideal for use in various scenarios, such as macro sites located on poles, indoor distributed RRU, and remote RRU sites.
Features:
- Simple Installation: Flexible design allows for quick installation including power and backup battery
- Easy O&M: Fan-free design, routine maintenance-free
- Reliable Power Supply: Can be used with LBE-DBU2400WH for energy backup, IP65, working temperature 40 to +55
Scenarios:
- Indoor/outdoor distributed sites
- RRU/AAU remote site
- Easy macro sites
- IBS
- Enterprise telecom scenario
|
Distributed Power Unit for DC Load Scenarios |
|
|
Product Type |
LBE-DPU3KW |
|
System |
|
|
Dimension (W×D×H) |
60mm x 300mm x 400mm |
|
Weight |
≤ 8kg |
|
Installation Mode |
Wall-mounted, pole-mounted, tower installation |
|
Rated Power |
3000 W |
|
Maximise Parallel Number |
4* |
|
Cabling Mode |
Bottom inlet and outlet |
|
Protection Level |
IP65 |
|
Working Temperature |
−40°C to +55°C (without solar radiation) |
|
Cooling Mode |
Natural heat dissipation |
|
Operating Environment |
Class C* |
|
Grid Environment |
1st/ 2nd/ 3rd rate grid* |
|
EMC |
CE:EN55032 Class B (AC input) |
|
RE:EN55032 Class B |
|
|
Environment |
|
|
Storage Temperature |
−40°C to +75°C |
|
Operating Humidity |
5% to 95% (non-condensing) |
|
Altitude |
-60 to 5000m (From 2000~5000m, each 200m increases in |
|
altitude will decrease the working temperature by 1oC) |
|
|
Power Input |
|
|
Power Input Mode |
220 V AC single-phase |
|
110 V AC dual-live wire |
|
|
Input Voltage |
AC: 85 - 300 V AC |
|
Input Frequency |
45 Hz - 65 Hz |
|
AC Input |
1x 30 A |
|
AC SPD |
20 kA/20 kA, 8/20 μs |
|
Load Output |
|
|
Output Power |
3000 W |
|
Output Voltage |
-54.5V DC (default) |
|
57V DC((constant)) |
|
|
DC Output |
3x40 A Quick plug terminals with replaceable fuse |
|
Battery Branch |
1x80 A Quick plug terminals |
|
DC SPD |
10 kA/20 kA, 8/20 μs |
|
Efficiency |
Maximum efficiency ≥97% |
|
Distributed Power Unit for DC Load Scenarios |
|
|
Product Type |
EUR-PS-DPU3KW |
|
Communication Interface |
|
|
Interface Definition |
South (DB9): 2 × CAN |
|
North (DB15):1 × RS485* (4 line) |
|
|
Dry contact (DB15): 4 |
|
|
MBUS |
|
|
Wireless backhaul (2G/4G modules required) |
|
|
Others |
|
|
Security Standards |
IEC62368-1,,IEC/EN 60950-22,,IEC60950-1 |
|
MBTF |
≥ 500,000 hour((@25°C) |
