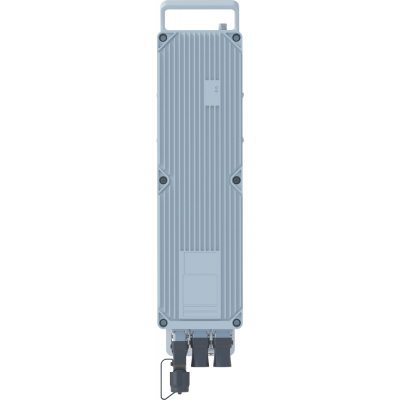

Euroka Distributed Blade Battery Unit 2400WH 48VDC
Non-Trade customers are welcome to purchase.
For Trade customers, please Sign In or Register for a Trade Account
You are submitting an enquiry for
The LBE-DBU2400WH is an energy storage module that utilizes advanced Li-ion technology to deliver reliable backup power for macro sites, small cells, and remote RRU. This module is purpose-built to operate seamlessly with the Distributed Power Unit, ensuring optimal performance of the system.
Features:
- Long-lasting cycle life of up to 1200 times @100% depth of discharge (DOD), 35℃
- High charge acceptance to ensure a fast and thorough recharge
- Capable of working in a wide temperature range from -40℃ to +55℃ (without solar radiation)
- High protection level: IP 65
Scenarios:
- Macro Sites
- Enterprise Telecom Scenario
| Item | Description |
|---|---|
| Parameters | |
| Nominal Voltage | 48V DC |
| Operating Voltage | 47V DC ~ 57V DC |
| Nominal Capacity (2) | 2400 Wh @ 5 hrs., 35ºC |
| Charging / Discharging Current | Charge: default 10 A, maximum 25 A Discharge: maximum 64 A, 3 kW |
| Weight | ≈ 26 Kg |
| Dimension (W × D × H) | 120mm x 300mm x 420mm |
| Self Discharge @ 25ºC | Less than 5% after 90 days storage |
| Communication Type | CAN |
| Battery Port | 2 X 80A Quick plug terminals |
| Protection | Over temperature, over current, short circuit, over charge/ discharge, etc |
| Storage Temperature (1) | Transportation: -40ºC to 60ºC; Storage: 0ºC to 40ºC |
| Relative Humidity | 5% to 95% (non-condensing) |
| Maximum Operating Altitude | -60 ~ 4000 m (From 2000 m to 4000 m, each 200m increases in altitude will decrease the working temperature by 1ºC) |
| Max Parallel number | 8 |
| Maximum Load Power Consumption | 1 group: ≤ 3000 W; 2 groups: ≤ 5700 W; 3~8 groups: quantity * 3 kW*0.8 (maximum 19.2 kW) |
1. The recommended storage temperature is 20ºC to 30ºC, battery life would be reduced if stored in high temperature (The recharging interval should be 12 months under the condition of storage temperature < 30ºC, and 8 months under the condition of 30ºC < storage temperature < 40ºC).
2. Affected by the external environment factors, such as temperature and duration of transportation and storage, the rated capacity may fluctuate by ±5%
